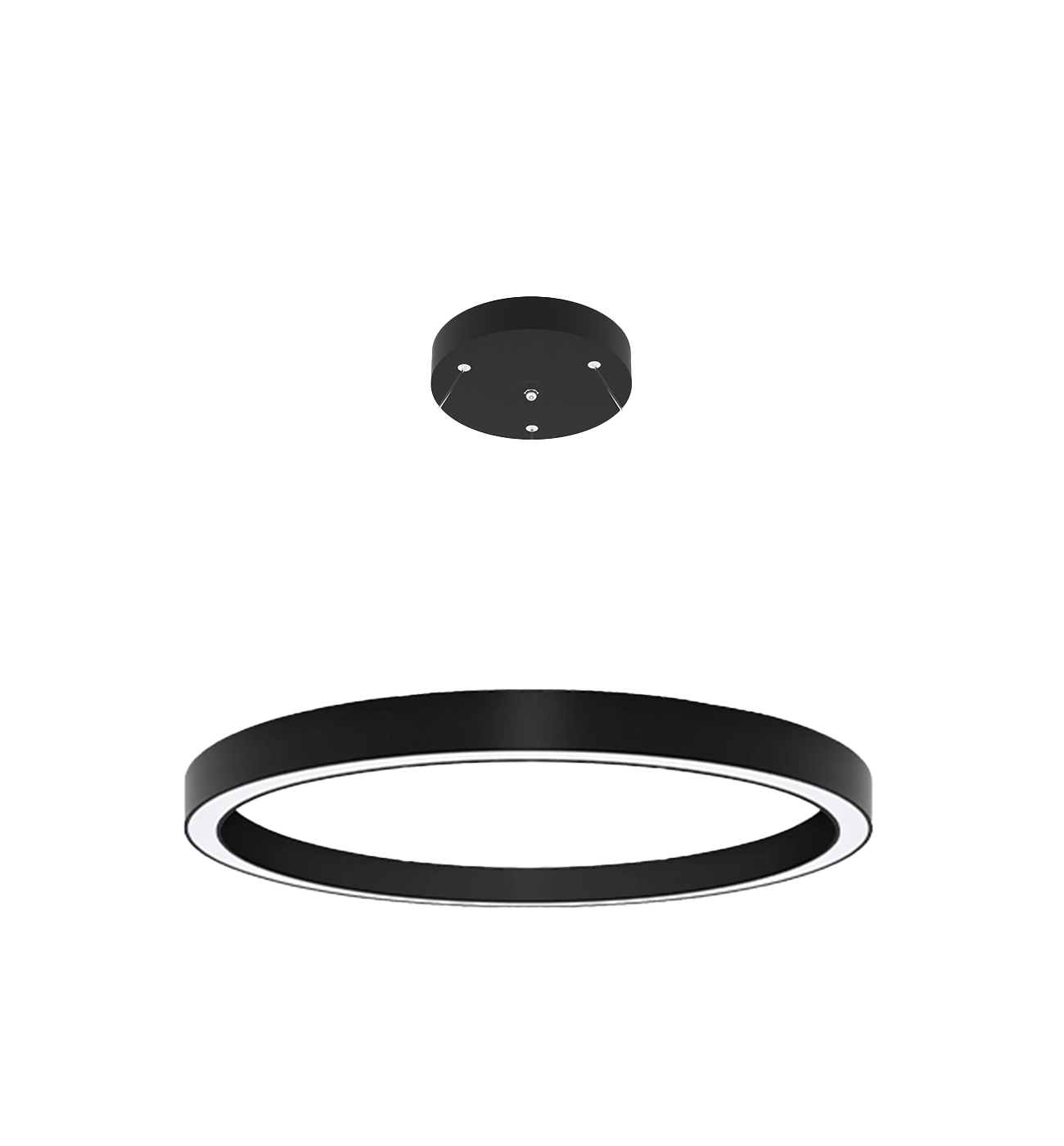

Dimons 2 Decorative Lighting
Protection Class
:
IP44 (indoor) / IP65 (outdoor) - Provides protection against dust and water. |
Material
:
Corrosion-resistant metal or aluminum, UV-resistant coating for outdoor use. |
Light Source
:
LED technology offers low energy consumption and long-lasting performance. |
Operating Temperature
:
Wide operating temperature range between -10°C and +40°C. |
Mounting Options
:
Flexible structure suitable for wall, ceiling, or ground mounting. |
|
|
|
|
|
|
|
INFORMATION REQUEST FORM
Name Surname
Phone No
E Mail
Message
|
|
TECHNICAL INFORMATION
Product Code
NX-200601 |
Power
40W / 12W |
Lumen
3600 |
Weight
2,5 kg |
Dimensions (mm) a - b - h
80x120xØ400
Cutting Size
Light Color
2700K-3000K-4000K-6500K |
Product Code
NX-200602 |
Power
50W / 15W |
Lumen
4500 |
Weight
3,1 kg |
Dimensions (mm) a - b - h
Ø500
Cutting Size
Light Color
2700K-3000K-4000K-6500K |
Product Code
NX-200603 |
Power
57W / 19W |
Lumen
5200 |
Weight
3,7 kg |
Dimensions (mm) a - b - h
Ø600
Cutting Size
Light Color
2700K-3000K-4000K-6500K |
Product Code
NX-200604 |
Power
66W / 22W |
Lumen
6000 |
Weight
4,2 kg |
Dimensions (mm) a - b - h
Ø700
Cutting Size
Light Color
2700K-3000K-4000K-6500K |
Product Code
NX-200605 |
Power
75W / 25W |
Lumen
6800 |
Weight
4,8 kg |
Dimensions (mm) a - b - h
Ø800
Cutting Size
Light Color
2700K-3000K-4000K-6500K |
Product Code
NX-200606 |
Power
85W / 28W |
Lumen
7700 |
Weight
5,5 kg |
Dimensions (mm) a - b - h
Ø900
Cutting Size
Light Color
2700K-3000K-4000K-6500K |
Product Code
NX-200607 |
Power
95W / 31W |
Lumen
8600 |
Weight
6,1 kg |
Dimensions (mm) a - b - h
Ø1000
Cutting Size
Light Color
2700K-3000K-4000K-6500K |
Product Code
NX-200608 |
Power
105W / 34W |
Lumen
9600 |
Weight
6,6 kg |
Dimensions (mm) a - b - h
Ø1100
Cutting Size
Light Color
2700K-3000K-4000K-6500K |
Product Code
NX-200609 |
Power
115W / 37W |
Lumen
10000 |
Weight
7,35 kg |
Dimensions (mm) a - b - h
Ø1200
Cutting Size
Light Color
2700K-3000K-4000K-6500K |
Product Code
NX-200610 |
Power
125W / 40W |
Lumen
11500 |
Weight
7,85 kg |
Dimensions (mm) a - b - h
Ø1300
Cutting Size
Light Color
2700K-3000K-4000K-6500K |
Product Code
NX-200611 |
Power
133W / 43W |
Lumen
12000 |
Weight
8,3 kg |
Dimensions (mm) a - b - h
Ø1400
Cutting Size
Light Color
2700K-3000K-4000K-6500K |
Product Code
NX-200612 |
Power
141W / 46W |
Lumen
12700 |
Weight
8,8 kg |
Dimensions (mm) a - b - h
Ø1500
Cutting Size
Light Color
2700K-3000K-4000K-6500K |
Product Code
NX-200613 |
Power
150W / 49W |
Lumen
13500 |
Weight
9,4 kg |
Dimensions (mm) a - b - h
Ø1600
Cutting Size
Light Color
2700K-3000K-4000K-6500K |
Product Code
NX-200614 |
Power
160W / 52W |
Lumen
14400 |
Weight
10,1 kg |
Dimensions (mm) a - b - h
Ø1700
Cutting Size
Light Color
2700K-3000K-4000K-6500K |
Product Code
NX-200615 |
Power
170W / 55W |
Lumen
15300 |
Weight
10,8 kg |
Dimensions (mm) a - b - h
Ø1800
Cutting Size
Light Color
2700K-3000K-4000K-6500K |
Product Code
NX-200616 |
Power
180W / 58W |
Lumen
16200 |
Weight
11,4 kg |
Dimensions (mm) a - b - h
Ø1900
Cutting Size
Light Color
2700K-3000K-4000K-6500K |
Product Code
NX-200617 |
Power
190W / 61W |
Lumen
17100 |
Weight
11,7 kg |
Dimensions (mm) a - b - h
Ø2000
Cutting Size
Light Color
2700K-3000K-4000K-6500K |
Product Code
NX-200618 |
Power
235W / 79W |
Lumen
21000 |
Weight
14 kg |
Dimensions (mm) a - b - h
Ø2500
Cutting Size
Light Color
2700K-3000K-4000K-6500K |
Product Code
NX-200619 |
Power
285W / 95W |
Lumen
25000 |
Weight
18 kg |
Dimensions (mm) a - b - h
NX-200619
Cutting Size
Light Color
2700K-3000K-4000K-6500K |
|
