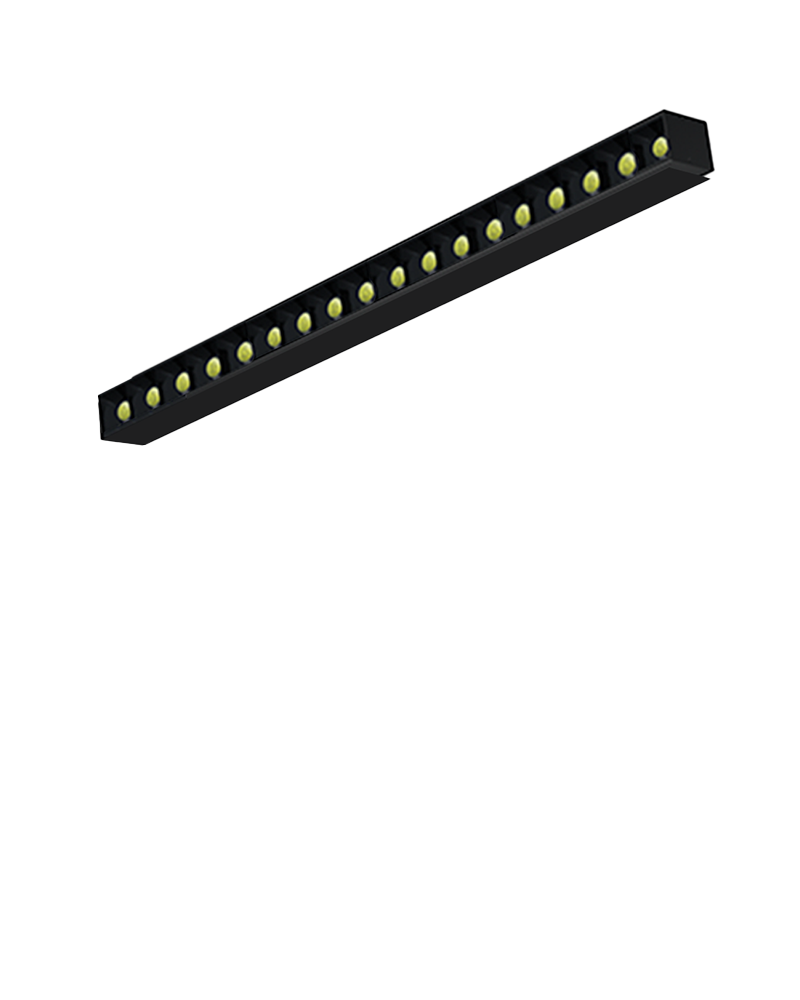

Ares 1 Linear Lighting

Led Linear Lighting:

LED Linear Lighting is a stylish, long-lasting and environmentally friendly lighting solution with its modern design and energy efficiency.

Energy Efficiency:

It provides low energy consumption thanks to LED technology.

High Light Efficiency

It offers homogeneous and strong light distribution.

Various Sizes:

Different length and width options are available.

PRODUCT DOCUMENTS

INFORMATION REQUEST FORM

Name Surname

Phone No

E Mail

Message

To send, write YES in the box on the right; You can approve sharing your information with us within the scope of KVKK

TECHNICAL INFORMATION

Product Code

Power

Lumen

Light Color

Dimensions (mm) a - b - h

Cutting Size

Weight (kg)

NX-100112

600 lm

2700K-3000K-4000K-6500K

34x39x136

0,2 kg

NX-100122

10W

1200 lm

2700K-3000K-4000K-6500K

34x39x268

0,4 kg

NX-100132

15W

1800 lm

2700K-3000K-4000K-6500K

34x39x401

0,6 kg

NX-100142

20W

2400 lm

2700K-3000K-4000K-6500K

34x39x533

0,8 kg

NX-100152

25W

3000 lm

2700K-3000K-4000K-6500K

34x39x666

1 kg

NX-100162

35W

4200 lm

2700K-3000K-4000K-6500K

34x39x931

1,3 kg

NX-100172

45W

5400 lm

2700K-3000K-4000K-6500K

34x39x1196

1,7 kg

NX-100182

55W

6600 lm

2700K-3000K-4000K-6500K

34x39x1461

2,1 kg

NX-100192

65W

7800 lm

2700K-3000K-4000K-6500K

34x39x1726

2,4 kg

PRODUCT GROUPS

Linear Lighting

Recessed Decorative Lighting

Surface Mounted Decorative Lighting

Magnet Lighting

Indoor Lighting

Industrial Lighting

Road Street Lighting

Linear Lighting

Park Garden Luminaires

Decorative Pole & Bollard Lighting

Ex-proof and Emergency Lighting

ADDRESS
Ataşehir Ferhat Paşa, 41. Sk. No: 10, 34888 Ataşehir / İstanbul

PHONE
+90 216 466 52 98

E MAIL
info@evaaydinlatma.com.tr

SOCIAL MEDIA

Ares 1 Linear Lighting

Ares 1 Linear Lighting

Led Linear Lighting: :
LED Linear Lighting is a stylish, long-lasting and environmentally friendly lighting solution with its modern design and energy efficiency.

Energy Efficiency: :
It provides low energy consumption thanks to LED technology.

High Light Efficiency :
It offers homogeneous and strong light distribution.

Various Sizes: :
Different length and width options are available.

INFORMATION REQUEST FORM

Name Surname

Phone No

E Mail

Message

To send, write YES in the box on the right; You can approve sharing your information with us within the scope of KVKK

TECHNICAL INFORMATION

Product Code NX-100112	Power 5W
Lumen 600 lm	Weight 0,2 kg
Dimensions (mm) a - b - h 34x39x136 Cutting Size Light Color 2700K-3000K-4000K-6500K

Product Code NX-100122	Power 10W
Lumen 1200 lm	Weight 0,4 kg
Dimensions (mm) a - b - h 34x39x268 Cutting Size Light Color 2700K-3000K-4000K-6500K

Product Code NX-100132	Power 15W
Lumen 1800 lm	Weight 0,6 kg
Dimensions (mm) a - b - h 34x39x401 Cutting Size Light Color 2700K-3000K-4000K-6500K

Product Code NX-100142	Power 20W
Lumen 2400 lm	Weight 0,8 kg
Dimensions (mm) a - b - h 34x39x533 Cutting Size Light Color 2700K-3000K-4000K-6500K

Product Code NX-100152	Power 25W
Lumen 3000 lm	Weight 1 kg
Dimensions (mm) a - b - h 34x39x666 Cutting Size Light Color 2700K-3000K-4000K-6500K

Product Code NX-100162	Power 35W
Lumen 4200 lm	Weight 1,3 kg
Dimensions (mm) a - b - h 34x39x931 Cutting Size Light Color 2700K-3000K-4000K-6500K

Product Code NX-100172	Power 45W
Lumen 5400 lm	Weight 1,7 kg
Dimensions (mm) a - b - h 34x39x1196 Cutting Size Light Color 2700K-3000K-4000K-6500K

Product Code NX-100182	Power 55W
Lumen 6600 lm	Weight 2,1 kg
Dimensions (mm) a - b - h 34x39x1461 Cutting Size Light Color 2700K-3000K-4000K-6500K

Product Code NX-100192	Power 65W
Lumen 7800 lm	Weight 2,4 kg
Dimensions (mm) a - b - h 34x39x1726 Cutting Size Light Color 2700K-3000K-4000K-6500K
